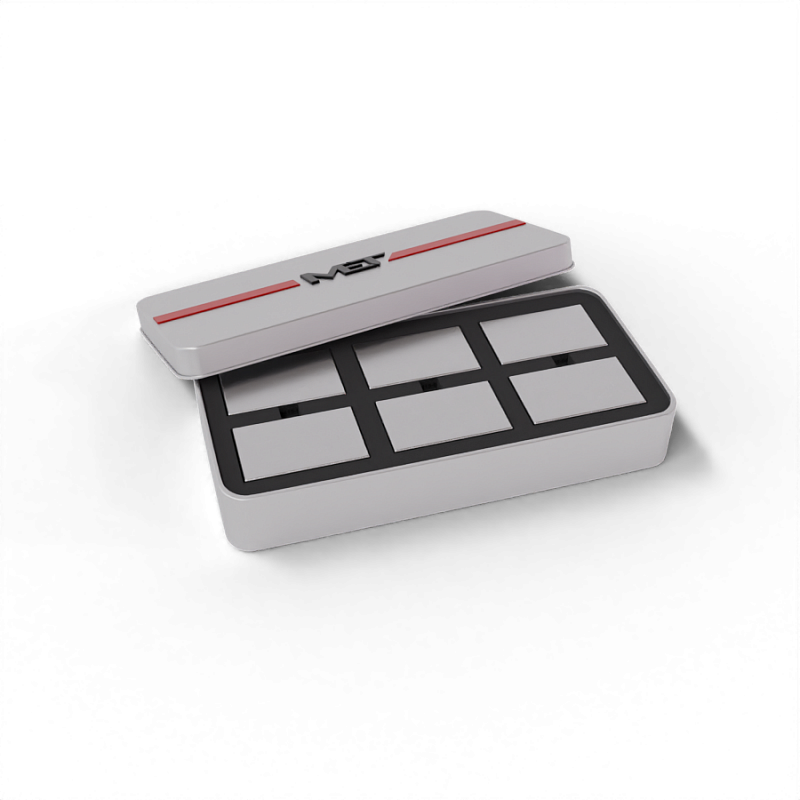

MTSR-MET Super-Rockwell hardness test blocks set 2nd grade GOST of 6 pcs. (60х40х10)
Technical characteristics
|
MEASURE TYPE (SIZE, MM) |
HARDNESS SCALE SUPER ROCKWELL |
LOAD, KGS (N) |
RANGE OF VALUES HARDNESS, HR |
RANGE OF VALUES HARDNESS, HR, NO MORE, FOR MEASURES |
|
|---|---|---|---|---|---|
|
1ST GRADE |
2ND GRADE |
||||
| MTSR-MET (60x40x10) | HR15N | 15 (147) | 92±2 | 0.4 | 0.6 |
| HR30N | 30 (294) | 80±4 | |||
| 45±5 | 0.6 | 1.1 | |||
| HR45N | 45 (441) | 49±6 | |||
| HR15T | 15 (147) | 90±3 | 0.6 | 1.0 | |
| HR30T | 30 (294) | 76±6 | 0.7 | 1.2 | |
| 50±5 | 1.2 | 1.8 | |||
| HR45T | 45 (441) | 60±10 | 0.6 |
1.2 |
|
Labeling
The following information is put onto the side surface of the hardness test block:
- Manufacturer's logo (Centre "МЕТ");
- Verification month;
- Test block serial number assigned by the National Metrological Institute of Russia, which performed the calibration;
- Hardness value with an indication of the hardness scale.
The state mark of verification belonging to VNIIFTRI is put onto the working area (right lower angle).
Advantages
- Minimum dispersion of hardness readings along the surface;
- Long-term stability;
- Manufacturing according to individual orders (on all hardness scales and ranges);
- Delivery by piece and in sets.
Standards compliance
- ISO 6506, ISO 6507, ISO 6508
- ASTM E92, ASTM E384, ASTM E18, ASTM E10
- GOST 9031, 8.064-94, GOST 8.063-07, GOST 8.062-85, GOST 8.516-01
Package
- Measures of hardness standard MET:
1 pc. MTSR-MET Super Rockwell hardness tester 45±5 HR30N 2 categories
1 pc. MTSR-MET Super Rockwell hardness tester 49±6 HR45N 2 categories
1 pc. MTSR-MET Super Rockwell hardness tester 50±5 HR30T 2 categories
1 pc. MTSR-MET Super Rockwell hardness tester 76±6 HR30T 2 categories
1 pc. MTSR-MET Super Rockwell hardness tester 80±4 HR30N 2 categories
1 pc. MTSR-MET Measure Super Rockwell hardness 92±2 HR15N 2 categories
- Passport
- Verification certificate
- Tin case with tray
Calibration, verification, certification
First and second category standard hardness measures are hardness measuring instruments subject to mandatory verification. Initial and periodic verification of measures is carried out by state metrological service bodies accredited for the right to verify hardness measuring instruments. The verification interval is 2 years.
In accordance with the current state verification schemes, first category measures are calibrated only on state hardness standards of Russia (the custodian of hardness standards is FSUE "VNIIFTRI"). Working hardness measuring instruments (stationary, portable and handheld hardness testers) are verified according to second category measures.
